Why Doesn't the System Print the Bottom Stub on My Design-Your-Own AP Laser Check?

Why Doesn't the System Print the Bottom Stub on My Design-Your-Own AP Laser Check?

To resolve this issue, I recommend using the Elliott Standard Laser Check instead of the DYO check if you haven't yet printed the new check form.

2.    If you still prefer to use the DYO check feature, make sure you've defined the correct line numbers:

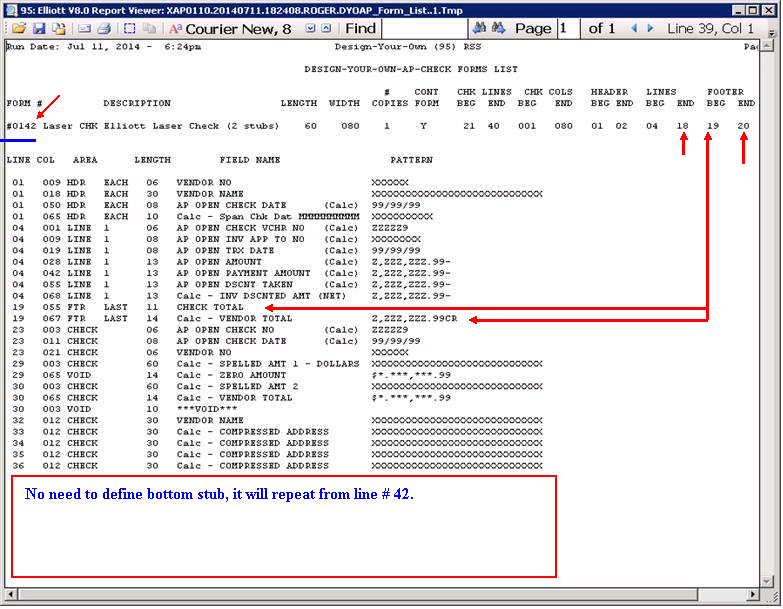

a.    Form# is the key for Top/Bottom check stub repeating. This is hard coded in the system. For example, Form number #0142 Laser CHK, means that the top stub will start on line 01 and the bottom stub will repeat on line 42.

b.    Check Total and Vendor Total indicate the lines on the top stub (i.e., line 19).

c.    Bottom Stub is not necessary to define; it will repeat beginning on line 42.
