Feature - Added Support to “Create I/M Trx CSV Import” for Kit Items

Feature - Added Support to “Create I/M Trx CSV Import” for Kit Items

Release Date: 3/29/17

Added a new feature to “Create I/M Trx CSV Import” for Kit items.

If the following flag in Global Setup-> Dist -> I/M Global Control, Screen 3: 16. Use Kit Components in Create I/M Trx CSV Import is set to "Y" as follows:



the program will then create separate transactions for each component in the Kit, previously only the Kit Parent Item would appear in the transaction file.  The following example shows this effect.

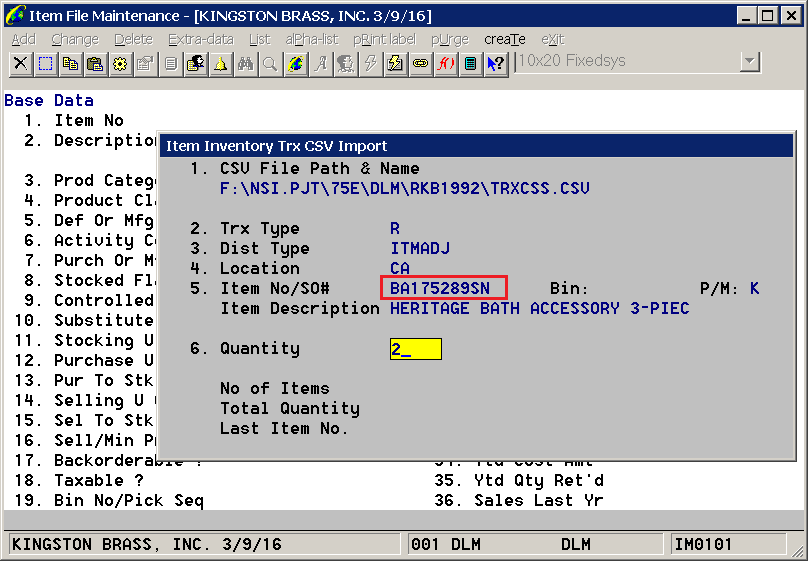

After entering a Kit Parent Item:



Transactions will be created for each component item.

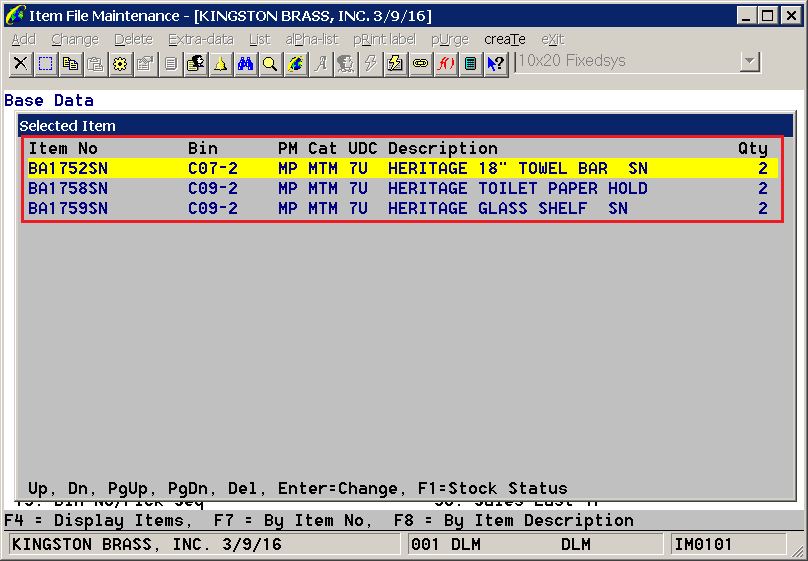

Pressing F4 to Display Items will show the separate items as follows:



Modified programs: NSCTLMN3, IMTRXCSS

DLM
