Feature - Transfer History Inquiry & Drill Down from BOMP Work Order Inquiry

Feature - Transfer History Inquiry & Drill Down from BOMP Work Order Inquiry


Release date: 4/22/2022
Version: 8.5 and Up

Elliott Inventory Transfer Processing was added for multi-bin processing purposes. Since the very beginning of this function, when a transfer batch is completed and posted, the data is moved to the history.  But there's no user interface to access the history transfer information.  We are now adding the ability to access Inventory Transfer History.  In addition, the Transfer History can be directly drilled down to from BOMP Work Order Inquiry.

Transfer History Inquiry

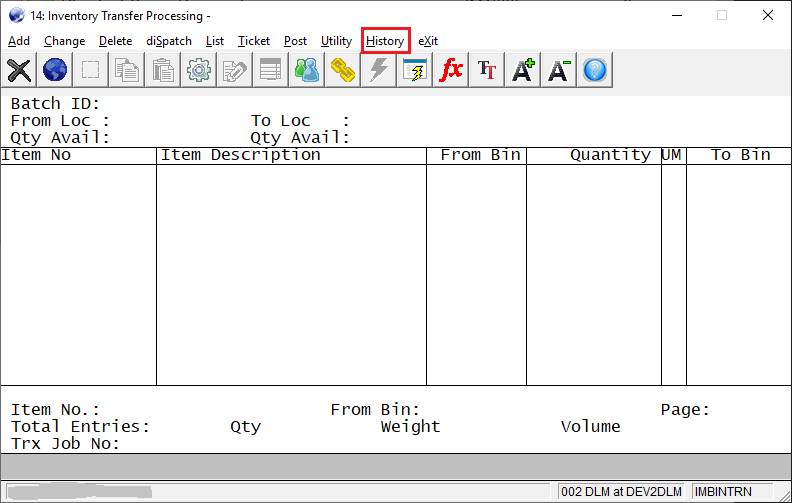

The primary way to access Transfer History is through the "IM / Processing / Inventory Transfer Management"  task.  Select "History."

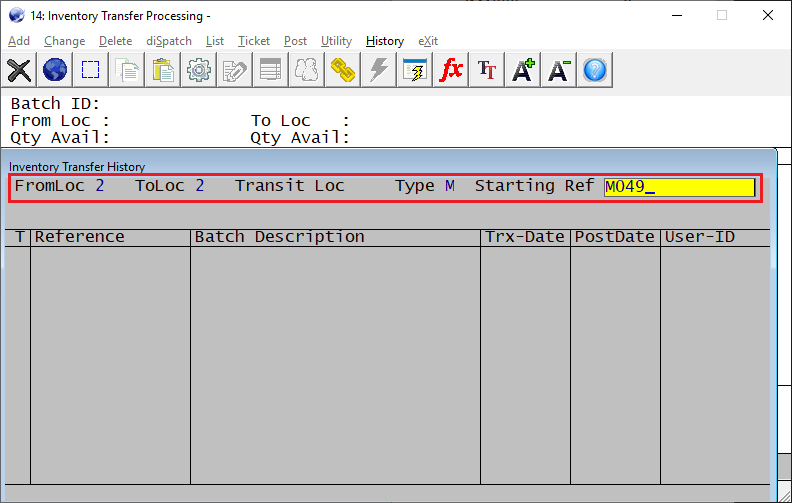

Enter FromLoc, ToLoc, Transit Loc (if applicable), Type, and Starting Ref.  The Starting Ref field will be used to screen the records. Up to 15 characters may be entered in the Starting Ref field. In the example below, records with the first 4 positions of the History file Reference field matching the M049 will be included (up to a maximum of 5,000 records).


Type: The possible values are:
  • M = Material Transfer (from BOMP Work Order). The "Reference" will be "M....." where "M" means material order or "P" means plus work order, etc.
  • P = Parent Transfer (from BOMP Work Order). The "Reference" is the same as above.
  • S = Sales Order Shipping. The "Reference" is the sales order number.
  • R = PO Receiving. The "Reference" is the PO number including the release number (total of 8 digits).
  • I = IM Receiving.
  • F = Free format.

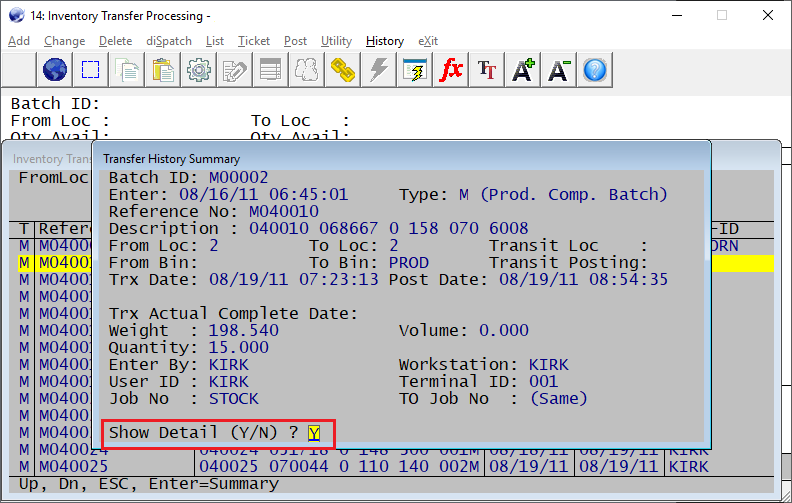

After pressing Enter, the Inventory Transfer History table information will display.  You may cursor up and down, as well as PageUp and PageDown. Press ESC to return to the Starting Ref field. Press Enter to display a new window with Transfer History Summary information for the batch.


On the summary window, you may press ESC or enter "N" to return to the Inventory Transfer History window. Enter "Y" to drill down to the Transfer History Detail.


This is the Transfer History Detail screen.  You may cursor up or down, and page up or down.  Press ESC  to return to the Inventory Transfer History window.


Work Order Inquiry Drill Down
The above Transaction History Detail screen may also be reached thru BM / Inquiry / Work Order Inquiry.

Plus Work Order Inquiry Drill Down
Select Inquiry / Plus Work Order to see the Plus Work Order Inquiry screen.  Enter the Order No, then "F1=Change View."  Select "Component Data" and the following screen will display:

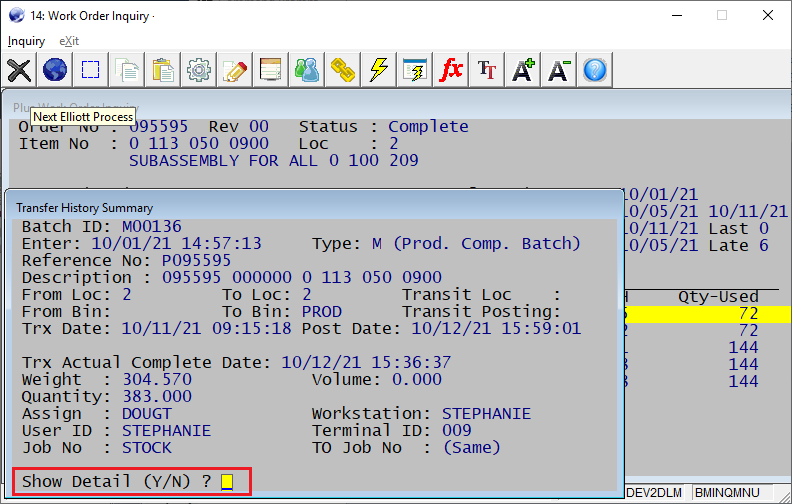

Select "F4=Trsf Hst" to view the Transfer History Summary window.  On the summary window, you may press ESC or enter "N" to return to the Inventory Transfer History window. Enter
"Y" to drill down to the Transfer History Detail.

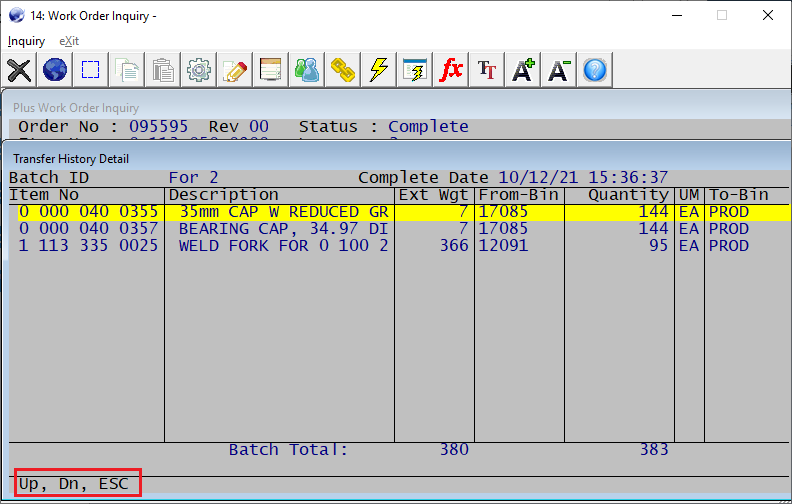

On the Detail screen, you may cursor up or down, page up or down, or press ESC to return to the Plus Work Order Inquiry screen.


Material Work Order Inquiry Drill Down

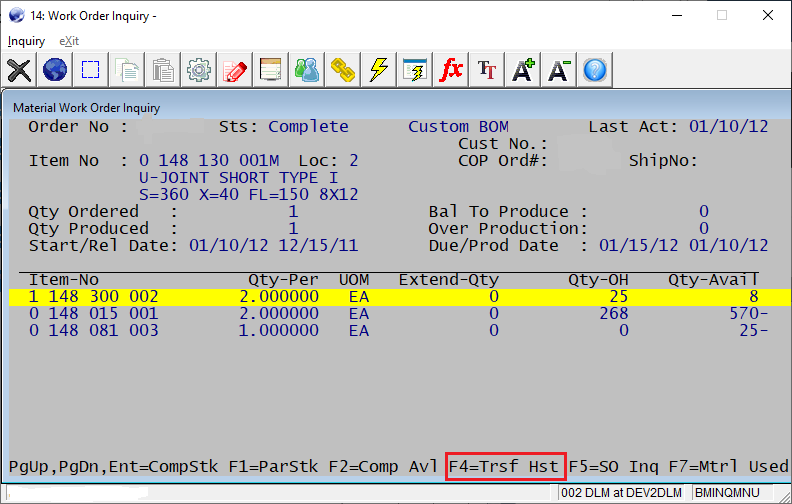

The Transfer History detail screen may also be entered thru BM / Inquiry / Work Order Inquiry. Select Inquiry / Material  Work Order to see the Material Work Order Inquiry screen:

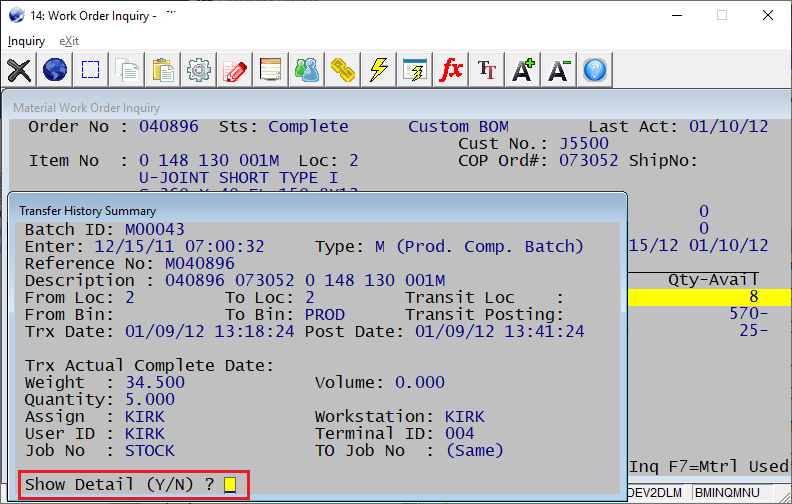

Select "F4=Trsf Hst" to view the Transfer History Summary window.  On the summary window, you may press ESC or enter "N" to return to the Inventory Transfer History window. Enter
"Y" to drill down to the Transfer History Detail.

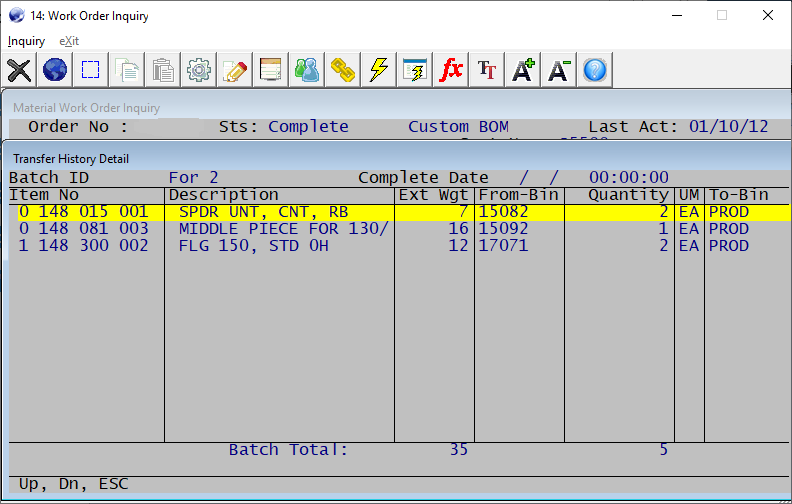

You may cursor up or down, page up or down, or press ESC to return to the Material Work Order Inquiry screen.


* Note the "F4=Trsf Hst" may not be available if the serial number is in use and the highlighted item is a serialized component.

Modified programs: IMBINTRN, IMBINHST, IMBINHSS, IMBINHSD, BMORDINQ, BMPORDIQ

DLM
