Elliott Main > Global Setup > Dist > BOMP Global Control

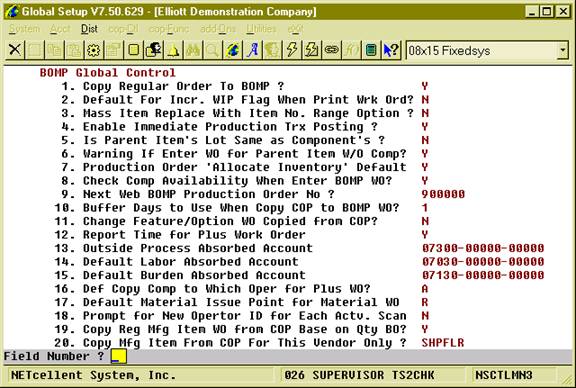

Figure 3A.1 shows the setup screen BOMP Global Control
This enhancement allows you to copy a regular order with manufactured item(s) into BOMP as a work order (like feature/option item(s)). You can define a range of order numbers to copy into BOMP. The system will then create the production work orders.
This enhancement is very simple to use. It is similar to Standard Elliott’s copy feature item to BOMP function. When you enable the enhancement (refer to Figure 71.1), the system will display a second option, “Copy Regular Mfg. Item” (as shown in Figure 71.2).
Figure 3A.3.

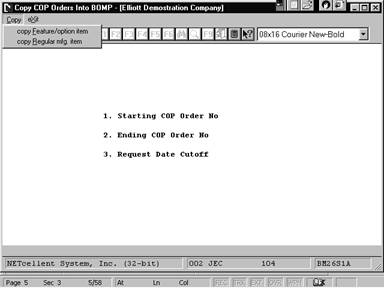

After enabling this function under Enhancements Setup, the system will display a second option, “Copy Regular Mfg. Item” when you select copy COP Order into BOMP.
This is a convenient function. It allows you to predefine the default values to “Y” WIP Distribution and Inv Reduction, “W” WIP Distribution Only, or “N” NOWIP.

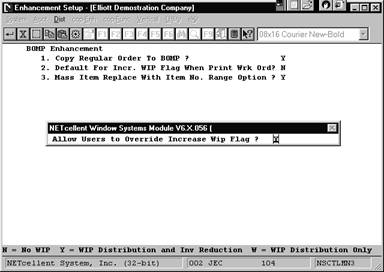

Figure 3A.4
Default For Incr. WIP Flag When Print Wrk Ord?
There are three options: “N” = No WIP, “Y” = WIP Distribution, and “W” = WIP Distribution Only.
This function enhances the Standard Elliott Mass Item Replace function in BOMP. The Standard Elliott function will replace all parent items with the new component(s). However, with this feature, you can define a range of parent items.
Figure 3A.5 shows the Mass Item Replace With Item No. Range Option enabled.
Allows production transactions to be immediately posted.
Indicate whether the parent and component share the same lot number.
A warning can be given if a work order is entered for an item without components.
You can specify if a work order should allocate inventory by default.
The system can check the availability of components when a work order is entered for an item.
Enter the next Web BOMP Order Number.
How many buffer days should the system use when an order is copied from COP?
Indicate whether feature and option items should be changed when copied from COP.
Options:
o “Y” (Default) – The system will track operator time and production time. Labor Cost and Burden Cost will be calculated based on time information for each production.
o “N” – The system will not track any time information and assumes no Labor and Burden Cost for the production. A simplified interface will be provided for scanning work. The system can still provide the current status in the shop. (Note: this flag cannot set to “N” at this moment.)
This account needs to be entered if the production routings include an outside process.
Newly created Department and Work Center entries will default to this value for the labor absorb account. It can be overridden in at Department Level and Work Center Level.
This account can be overridden at the Department Level and Work Center Level.
Plus Work Order introduces routings which contain one or more steps to complete parent items. If the material issue point is not specified, the system will pick a step as the default material issue point based on this setting.
Options:
o A (Default) – Attached Operation. If the Attached Operation Number (5. Attaching Operation) is specified in the Product Structure, the system will use a corresponding operation if Operation Number exists in the routing. If Operation does not exist or the Attached Operation Number is blank, the system will use the first operation.
o C – Currently Highlighted Operation. The highlighted operation will be used during data entry, like selecting a routing though Production Routing Maintenance. If there is no user interface, which is the case when a COP order is copied to BOMP, the first operation is used.
o F – Always use the first operation.
o L – Always use the last operation.
Enter the default material issue point for Material Work Orders.
When operators select the Work Order Production function to report their jobs for a production, they will be prompted for an Operator ID and password. If this computer is shared by other operators, the system should prompt for the ID and password each time. Otherwise, the ID and password are only required the first time. This is the default setting for the whole Elliott system, but you can override this.
Options:
o “Y” (Default) – The system always prompts for Operator ID and password.
o “N” – The system only prompts for the Operator ID and password the first time selected.

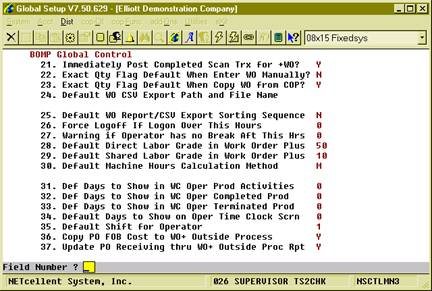

(Figure 6) BOMP Global Setup page 2
Allows an operator to immediately post the transaction that was reported through Work Order Production. Transactions reported in Production Transaction Processing use another flag to control immediate posting.
Options:
o “Y” (Default) – Allows you to post the transaction immediately.
o “N” – Not allow.
WO+ introduces a new flag for each work order, Exact Qty Flag, where selecting “Y” indicates the quantity completed must match the quantity ordered. This global setup field is the default value for Exact Qty Flag, which appears when a work order is created through Work Order Entry.
Options:
o “N” (Default) – The default value is “N”.
o “Y” – The default value is “Y”.
This is the default value of Exact Qty Flag when an order is copied from a COP Order.
Options:
o “N” (Default) – The default value is “N”.
o “Y” – The default value is “Y”.
Enter the default path and file name for the Work Order CSV export file.
Enter the default sorting sequence for the Work Order report CSV export
Operators may forget to log off of the system and this can cause problems with production reporting. This field indicates the number of hours before the system considers it an exception. When this is exceeded the system will log the operator off and create an exception log. End Of Day and Meal Break are both considered a logoff function.
Options:
o 0 (Default ) – 12 Hours
A warning is given when the number of hours logged in exceeds this value without a break, normal or meal break.
Options:
o 0 (Default ) – 6 Hours
Default value for the Direct Labor Grade field in Departments and Work Centers. This labor grade is used for evaluations.
Default value for the Shared Labor Grade field in Departments and Work Centers. This labor grade is used for evaluations.
Default value for the Machine Hours Calculation Method in Departments and Work Centers. This flag describes how the machine is operated in the work center and how the machine hours can be calculated.
Options:
o “M” (Default) – Man-Hours. Use this option when all the crew members are operating the same machine at one time. A Machine Hour is equal to the hours the crew spends on it. (Machine Hours = Labor Hours).
o “C” – Crew-Hours. Use this option when each crew member is operating their own machine. A Machine Hour is the sum of the hours that each crew member spends on it. (Machine Hours = Labor Hours times Number Of Crew Members).
o “S” – This means Machine Hours is not always related to Labor Hours. This is for situations where the machine can run independently without an operator involved, like a Computer Numerical Controlled (CNC) Machine. If “S” is selected, the following question will appear:
Since a machine can run without an operator, this flag indicates the default behavior of a work center machine when an operator leaves. You can always override this behavior.
Options:
o “Y” – The machine usually stops after the operator leaves.
o “N” – The machine keeps working after the operator leaves.
An option in the Work Center Operation/Inquiry screen shows all the production history of a work center. This value defines how many days will be displayed in this option. Qualified users can override this during the inquiry.
Options:
o 0 (Default) – All records
An option in the Work Center Operation/Inquiry screen shows the completed production history of a work center. This value defines how many days will be displayed in this option. Qualified users can override this during the inquiry.
Options:
o 0 (Default) – All records
An option in the Work Center Operation/Inquiry screen shows the cancelled production history of a work center. This value defines how many days will be displayed in this option. Qualified users can override this during the inquiry.
Options:
o 0 (Default) – All records
This value defines how many days will be displayed in the Operator Time Clock Maintenance/Inquiry. Qualified users can override this during the inquiry.
Options:
o 0 (Default) – All records
Default value for Operator file.
When products return from an outside process and the operator enters the Purchase Order Number of the outside process on the Production Transaction, this flag indicates if the system should use the most current FOB Cost in Purchase Order or the cost in Order Routing to calculate the outside process cost.
Options:
o “Y” (Default) – If a valid purchase order number is entered when reporting an Outside Process the system will use the FOB Cost from the PO Line Item instead of the one defined in Order Routing.
o “N” – Always use the pre-defined value in Order Routing
When an operator reports the Purchase Order Number for an Outside Process, this flag indicates if the system should create a PO Receiving Record when the production transaction is posted.
Options:
o “Y” (Default) – If a valid PO number is entered for outside processing, the system will create a PO Receiving Transaction once the transaction is posted.
o “N” – Never do PO Receiving though WO+.

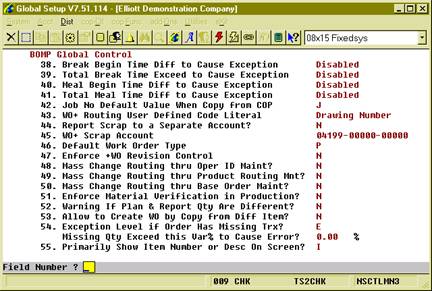

(Figure 7) BOMP Global Setup page 3
If an operator clocks out for a break earlier or later than the time defined in the Operator File and the difference in minutes is greater than this value, the system will consider this an exception and will notify the manager through an Elliott Event. The system will determine if it is 1st Break or 2nd Break based on the time it takes place. The manager can also specify a different value for each operator in the Operator File.
If the difference is negative, the operator took a break too early. If it is positive, the operator took a break too late.
Options:
o 0 (Default) – Disable checking.
If an operator records a break time longer or shorter than the defined time in the Operator File and the difference in minutes is greater than this value, the system will consider this an exception and will notify the manager through an Elliott Event. The system will determine if it is 1st Break or 2nd Break based on the time it takes place. The manager can also specify a different value for each operator in the Operator File.
It is only considered an exception when the operator’s break is too long.
Options:
o 0 (Default) – Disable checking
If an operator records a meal break earlier or later than the time defined in the Operator File and the difference in minutes is greater than this value, the system will consider this an exception and notify the manager through an Elliott Event. The manager can also specify a different value for each operator in the Operator File.
Options:
o 0 (Default) – Disable checking.
If an operator records a meal break longer or shorter than the time defined in the Operator File and the difference in minutes is greater than this value, the system will consider this an exception and notify the manager through an Elliott Event. The manager can also specify a different value for each operator in the Operator File.
It is only considered an exception when the operator’s meal break is too long.
Options:
o 0 (Default) – Disable checking.
This flag will indicate which value will be used as the Job Number by default when a work order is copied from a COP sales order.
Options:
o “J” (Default) – Sales Order’s Job Number
o “O” – Sales Order Number
o “C” – Customer Number
A Job Number will be automatically created if the Sales Order does not have a job number and Job Numbers are in use.
This setting defines the literal for the 15 character user-defined field for each operation. The default value of “User Defined Field” will be used if the value is left blank.
By default, the cost of scrap is absorbed into the Finished Goods account, or the Standard Variance account if the cost method is Standard Cost, and this increases the production cost or variance. Set this flag to “Y” if you want to separate this amount into another account. The system will use an algorithm to estimate this cost and distribute it to the scrap account.
Options:
o “N” (Default) – Not use another account for cost of scrap. The total production cost will increase due to scrap.
o “Y” – Use another account to absorb cost of scrap.
Scrap Account Number. Enter this account number if you plan to absorb the cost of scrap with a scrap account.
This flag was moved from the Available to Promise Global Setup to BOMP. Since we now have three 3 types of work orders, this flag indicates which is the major type in use. This will affect several areas, such as creating a work order through ATP processing. The default work order type will depend on this flag.
Options:
o “P”(Default) – Plus Work Order
o “M” – Material Work Order
o “O” – Legacy Work Order
After a Work Order is released to the shop floor, any change in order routing may cause confusion for the operators. Revision Control can prevent problems by requiring the operator to reprint the Traveler, which contains the order routing information, whenever the order routing is modified. Reporting for this work order will be suspended until the Traveler is reprinted.
The Revision Number of a Work Order is visible on many screen and reports. The original version of the order has a revision of zero.
Options:
o “N” (Default) – Revision Control not enforced.
o “Y” – Enforce Revision Control.
This global flag controls whether all the operations will be updated if a value is changed in the Operation ID file. These operations can be in Product Routing, Order Routing or Base Order.
Options:
This global flag controls whether all the work orders will be updated if a value is changed in the Product Routing file. These work orders can be Plus Work Orders or Base Work Orders.
Options:
When user changes the value in Base Work Order, all the work orders which is copied from this base order can be updated or synchronized at once. These work orders can be Plus Work Order. This global setup indicates if user wants to use this feature.
Options:
Material Verification requires the operator to enter the item number or scan the UPC of each item used when reporting a production for the material. This feature can be activated with this global setup flag.
Options:
If Material Verification is activated, another set of parameters will appear:
A warning can be displayed if an operator reports a quantity which is different from the planned quantity when the production started.
Options:
This flag determines if an operator is allowed to copy a routing and bill of material from another base plus work order to a plus work order and the item numbers on the two orders are different. The flag will not affect copying other orders to a base work order.
Options:
The system will check for any missing transactions in the previous operations when posting a transaction for the last operation. For example, 98 pieces are reported for the first operation and now the operator wants to post 100 pieces to the last operation. The system would consider the first operation to be missing a transaction of 2 pieces. This flag determines if the missing transaction is an error, warning or not an exception.
Options:
Another prompt will appear if this flag is “E” or “W”: “Missing Qty Exceed this Var% to Cause Error/Warning?”
You can select the item number or item description to be the primary display on the inquiry screens, depending on which one is more meaningful.
Options:
