How Do I Add A Column to An Existing UDR Report Desk Report?

How Do I Add A Column to An Existing UDR Report Desk Report?

Release Date: 04/11/2024
Version: 8.6 & Up

Q - I would like to add ITEM_CASE_SIZE to an existing Report Desk Report.  How do I do that?

A - Bring up the existing Report Desk report, and click on the "Modify" button on the bottom right corner.  If the "Modify" button is greyed out, that means you do do not have the privilege to modify.  See the following KB article for more details on setup:

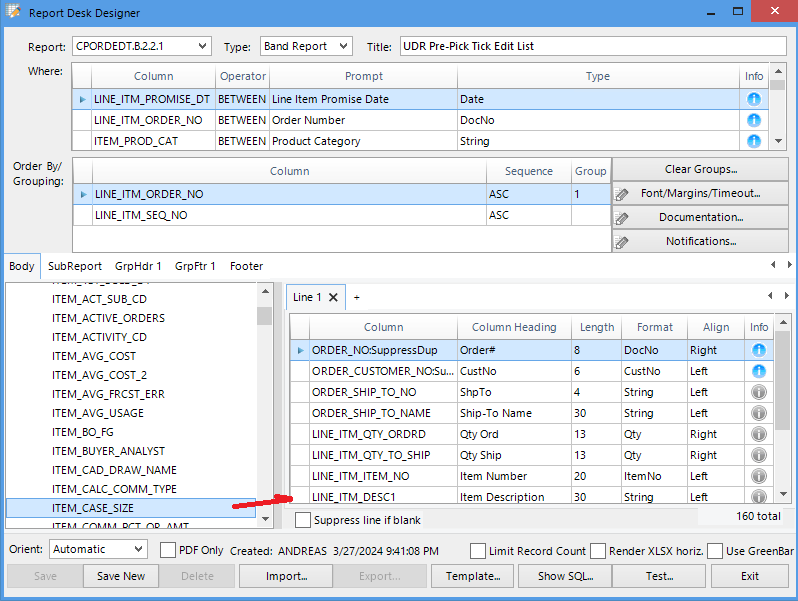

Once you click on the "Modify" button, in the "Report Desk Designer" window, find the IMITMFIL table on the bottom left pane and expand it.  Find the ITEM_CASE_SIZE column and drag it to the bottom right side pane.  Adjust the position.  Name the column heading accordingly.  See sample screen below:

Choose to "Save" or "Save New" and test your changes.

For step-by-step directions on how to design a Report Desk Report, please see the following KB article:


EMK
