Feature - Print Staging Slip by Range Selection of Bin Numbers

Feature - Print Staging Slip by Range Selection of Bin Numbers

Release Date - 7/28/16

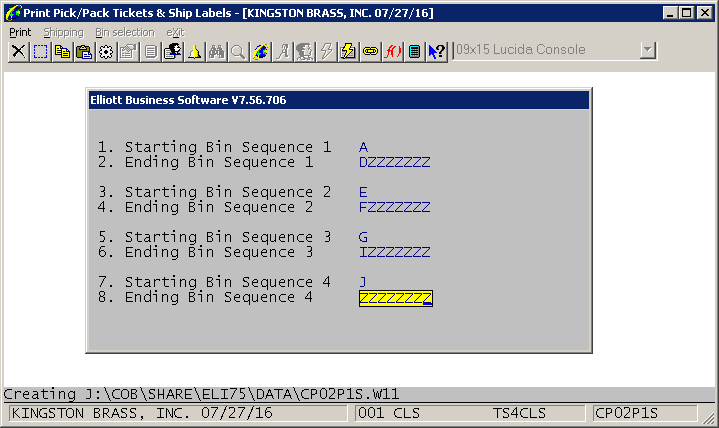

The purpose of this feature is to allow the user to print the staging slip by the bin ranges that are selected when the staging slips print. Before the staging slip prints, the application will prompt the user for multiple bin ranges:


The user can enter up to four bin ranges. The application will then print a staging slip of all line items that have bin numbers within these four bin ranges.

This feature will instead print up to four separate staging slips -- one for each bin range provided. The idea is that there are multiple areas in the warehouse. The staging slips can be assigned to different groups of people based on the area to pick.

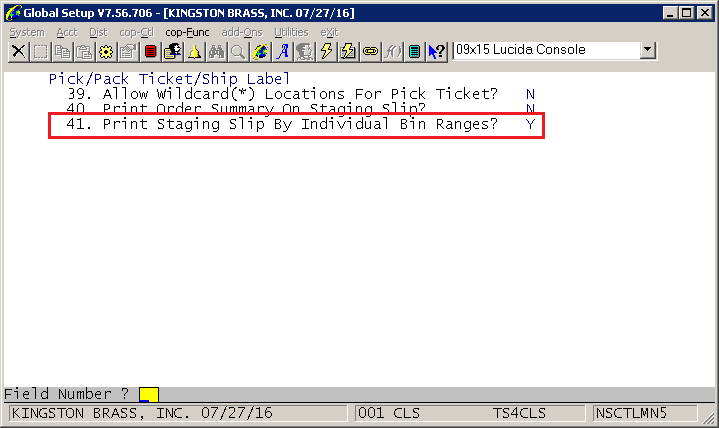

This feature is enabled through a new Global Setup flag: Global Setup -> Cop-Func -> Pick/Pack Ticket/Ship Label-> 41. Print Staging Slip By Individual Bin Ranges?


The default value for this option is N.

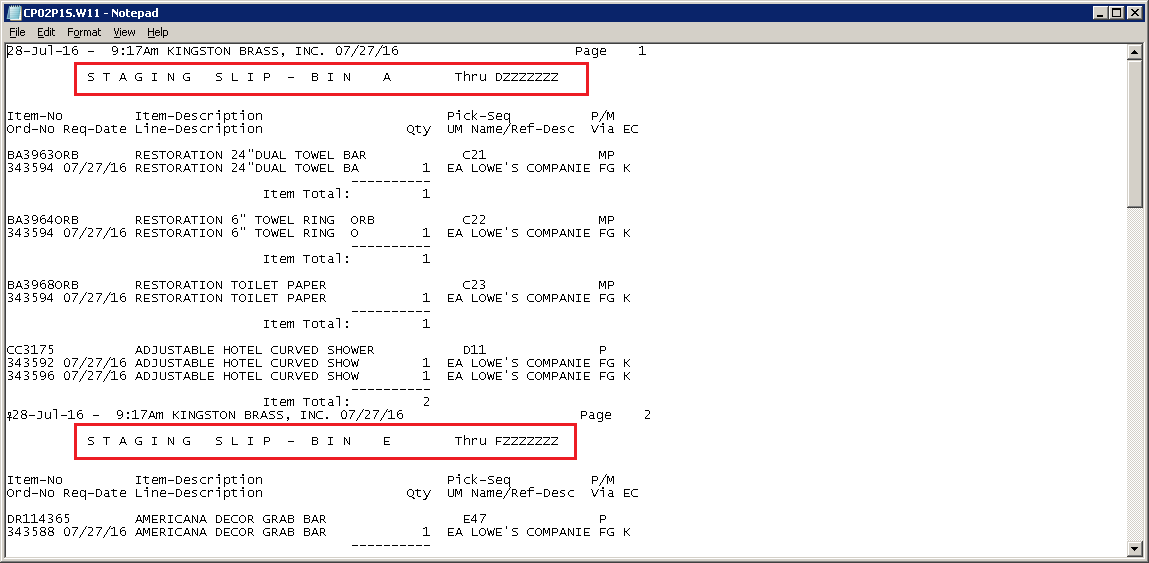

If the option is set to Y, the Order Detail Section and the Bin Summary sections will print by bin number range.


 The bin range will print in the report title area.

The Order Summary and Order Info sections will still print for all of the orders selected.

Programs Modified: NSCTLFIL.W30, NSCTLFIL.FD, NSCTLINI, NSCTLMN5, CP02P1S
