Feature - Move EDI Profile Maintenance Maximum # of Item Per Label

Feature - Move EDI Profile Maintenance Maximum # of Item Per Label

Release date: 11/7/2019

Version 8.5 and up

EDI Profile maintenance field "Maximum # of Item Per Label (UCC-128)" has been moved from
screen 5 to screen 2, field 1 in the pop-up window.

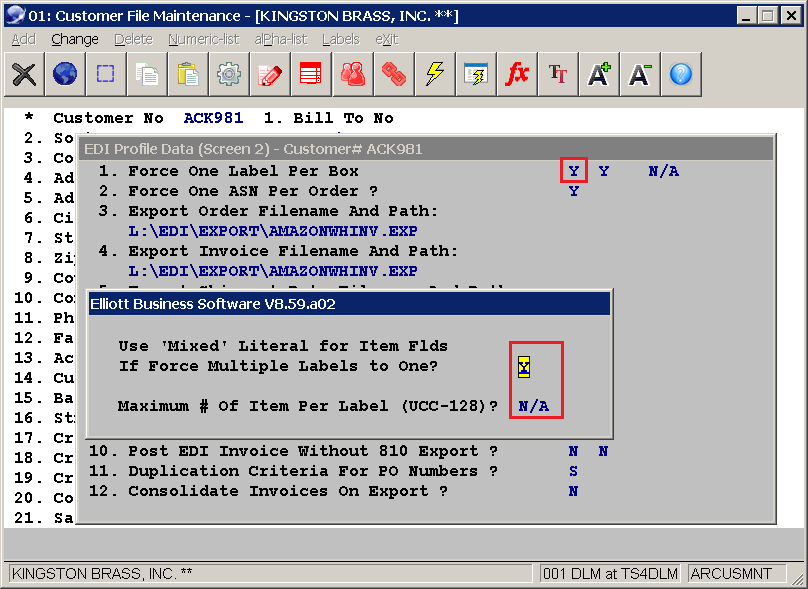

Screen 2 field 1 has been changed to show the values that will be shown inside the pop-up window displayed after entering the Y/N value for "Force One Label Per Box."



If "Y" is entered for "Force One Label Per Box" and "N" is entered for "Use 'Mixed' Literal for Item Flds If Force Multiple Labels to One?," the "Maximum # of Item Per Label (UCC-128)" will be available for change.


If "Y" is entered for "Force One Label Per Box" and "Y" is entered for "Use 'Mixed' Literal for Item Flds If Force Multiple Labels to One?," the "Maximum # of Item Per Label (UCC-128)" will be not available for change, and will show as "N/A."

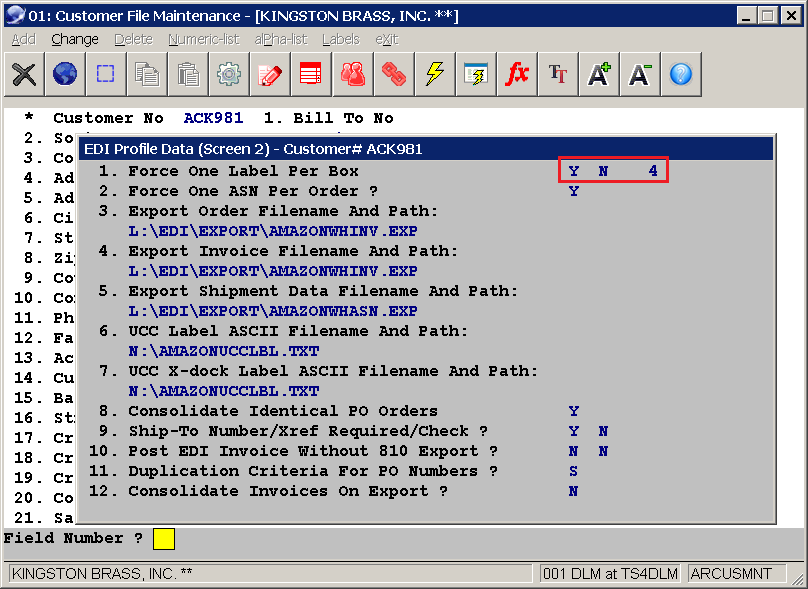

If "N" is entered for "Force One Label Per Box" and "Use 'Mixed' Literal for Item Flds If Force Multiple Labels to One?" is set to N/A, the "Maximum # of Item Per Label (UCC-128)" will be available for change.

The default value is "0" which means use the value in Global Setup -> Add-Ons ->Shipment Verification -> 24. Maximum # of item Per Label?


Modified program: ARCUSEDI

DLM
