Feature - Item Label Printing Enhancements

Feature - Item Label Printing Enhancements

Release Date: 7/12/16

The following are enhancements to the Item Label printing function:

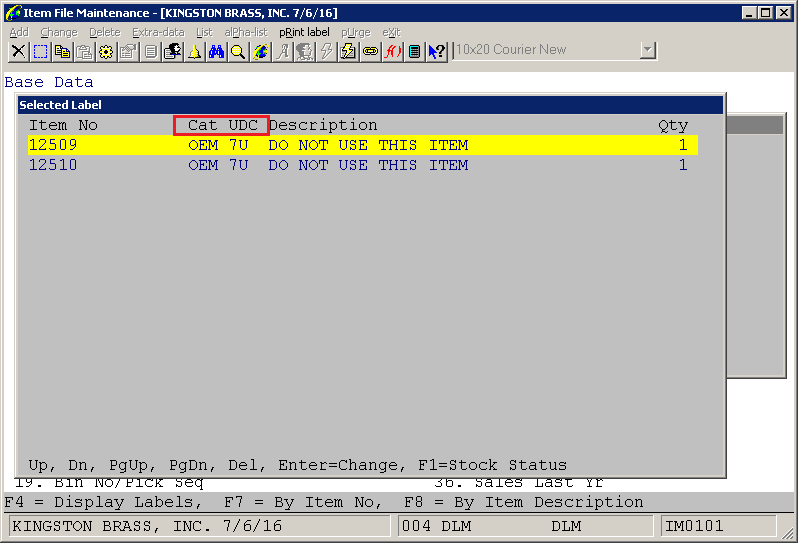

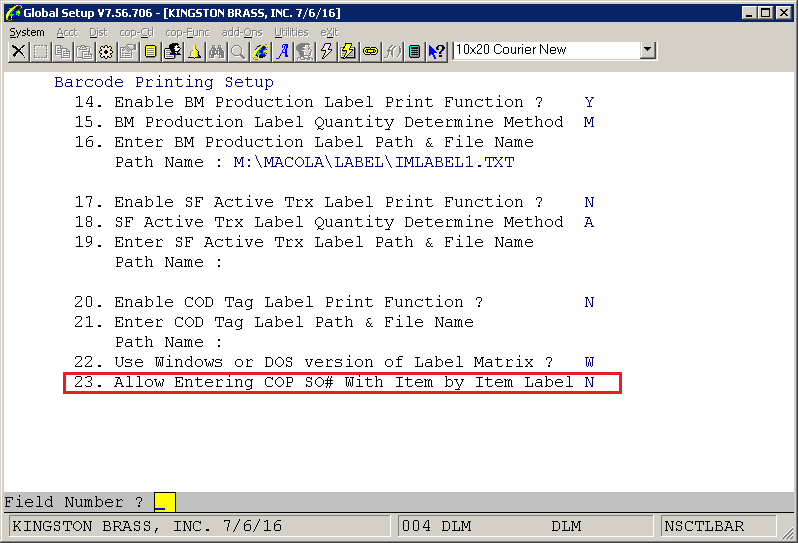

1) If Barcode Printing Setup, Line "23. Allow Entering COP SO# With Item by Item Label" is "N" the only change will be the addition of Category and User-Defined code to the Item Label print screen.

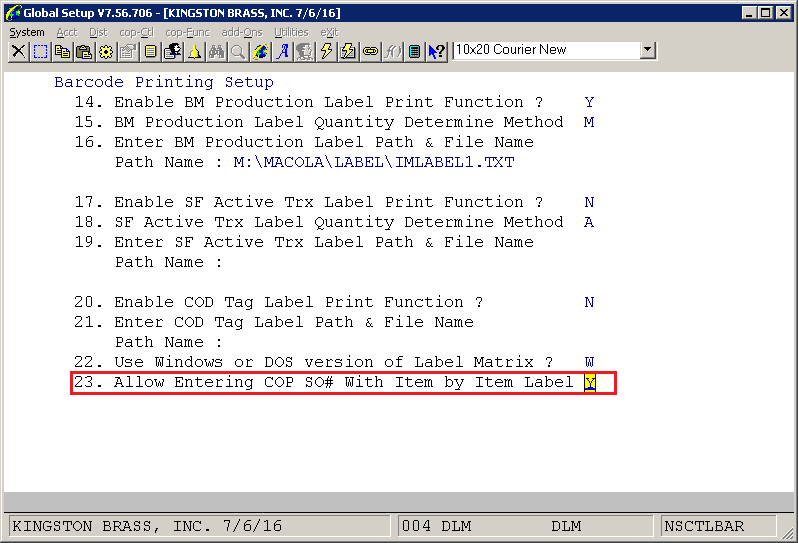

2)  If Barcode Printing Setup, Line "23. Allow Entering COP SO# With Item by Item Label" is "Y" the Item Label print screen will then
include WO#. and the popup window after entering "Y" will include 2 new setup fields as follows:

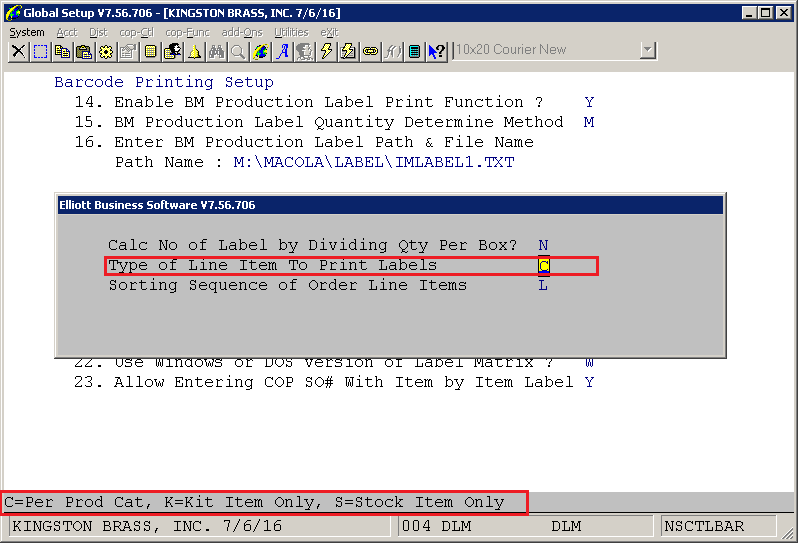

3)  The "Type of Line Item to Print Labels" has three options that affect the Select Item to print label window :
      C=Per Prod Cat - this is the current behavior of the program, the qty column number will be determined by the Product Category file setup
      K=Kit Item Only - this will cause only kit items to appear in the window
      S=Stock Item Only - this will cause only stocked items to appear in the window



4) The "Sorting Sequence of Order Line Items" has two options that affect the display on the Selected Label window :
     L=Line Number Sequence - this is the current behavior of the program and the items will appear in the sequence they were selected.

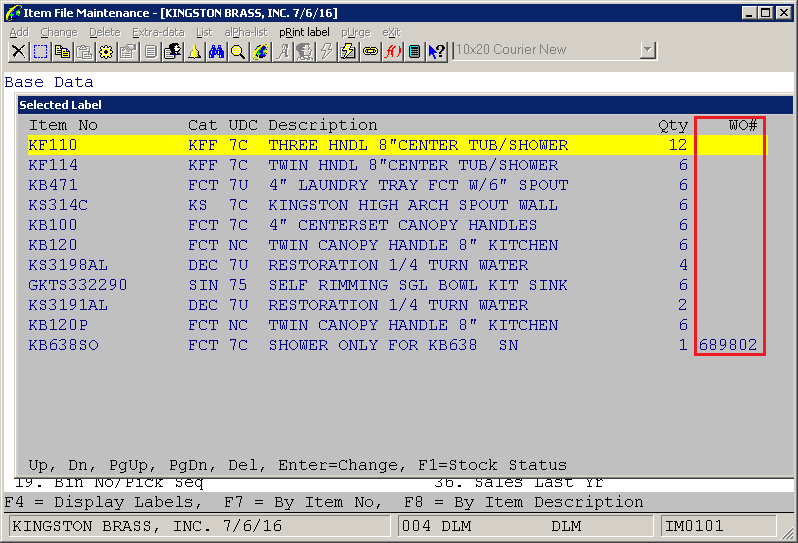

     W= Work Order Sequence - the items will appear first by WO# sequence and then by the sequence they were selected.


Programs changed:  NSCTLFIL.FD, NSCTLFIL.W30,  NSCTLINI, NSCTLBAR, IMLABSC3, CPORDDTL
DLM
