Feature - Indented Bill of Material CSV

Release date: 7/22/19

Version: 8.5 and up

Added the option to export the Indented Bill of Material report data to a CSV file.

CSV fields that will be exported:

ParentItem - Parent item number

ParentDesc - Parent item description 1

ParentDesc2 - Parent Item description 2

LLC - Parent low level code

EngnrRelse - Parent engineering release number

EngnrRev - Parent engineering revision number

ParActCd - Parent activity code

ParActSubCd - Parent activity sub code

LineNo - Report Line Sequence number to keep whole report can be restored to original sequence after sorting from different way on spreadsheet

Lv - Component level

SeqNo - Component sequence number

CompItem - Component item number

CompDesc - Component item description 1

CompDesc2 - Component item description 2

QtyPer - Component quantity per parent

CompLLC - Component low level code

UOM - Component unit of measure

AttchOper - Component attaching operation

Scrap - Component scrap factor

Act - Component product structure activity code

StkFlg - Component stocked flag

CtlFlg - Component controlled flag

P/M - Component purchased or manufactured flag and the mostly purchased or manufactured flag

OrdPol - Component order policy code

ProdCat - Component product category

UDC - Component user defined code

MCT - Component material cost type

CommCd - Component commodity code

CompActCd - Component item activity code

CompActSubCd - Component item sub activity code

If screen field "4. Type of Data To Print" is "I" (Inventory Data) the following fields will be exported:

CompQtyOH - Component quantity on hand at all locations

CompQtyOnOrder - Component quantity on order at all locations

CompQtyAlloc - Component quantity allocated at all locations

If screen field "4. Type of Data To Print" is "E" (Engineering Data) the following fields will be exported:

EngRls - Component engineering release

EngRev - Component engineering revision

RteRls - Component routing release

RteRev - Component routing revision

RteNum - Component routine number

If screen field "8. Print Reference Designators" is "Y", the following fields will be exported:

Ref1 - Reference designator 1

Ref2 - Reference designator 2

Ref3 - Reference designator 3

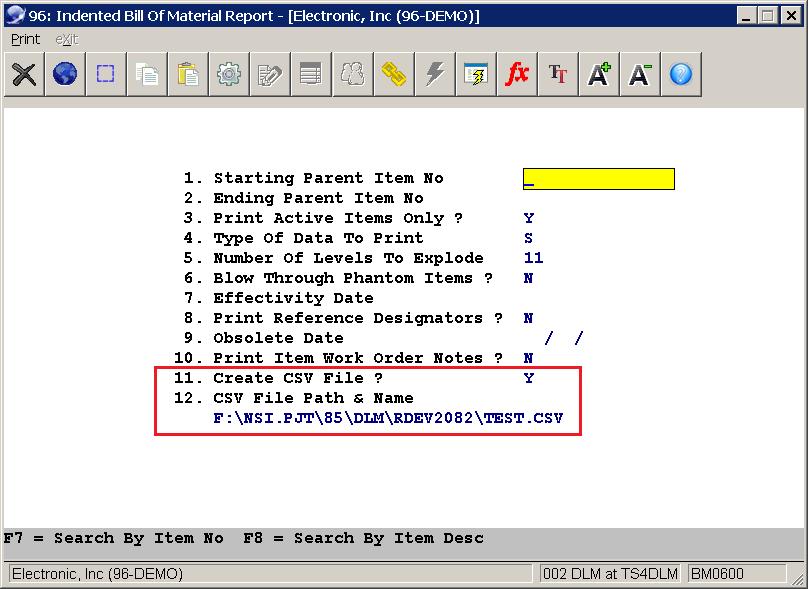

To export  the Indented Bill of Material report data to a CSV file, enter "Y" in "Create CSV File?," then enter a valid file name and path in "CSV File Name & Path."

Programs changed: BM0600.CBL, BM06P1.CBL

DLM
