Feature - Export Production Work Order Notes to CSV When Printing the Production Schedule Report

Release Date: 12/18/25

Version: 8.5 and Above

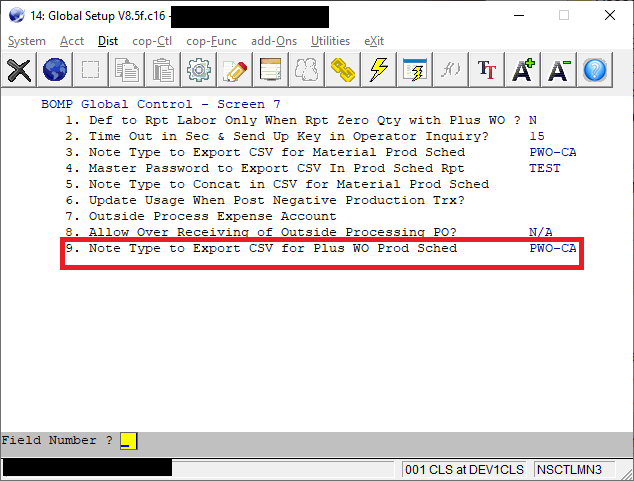

This feature allows the user to choose a specific note type that will be exported to CSV when the user runs the BOMP Production Schedule Report for plus production work orders. A new option has been added to System Utilities-> Global Setup-> Dist-> BOMP Global Setup-> screen 7-> Field 9. Note Type to Export CSV for Plus WO Prod Sched.

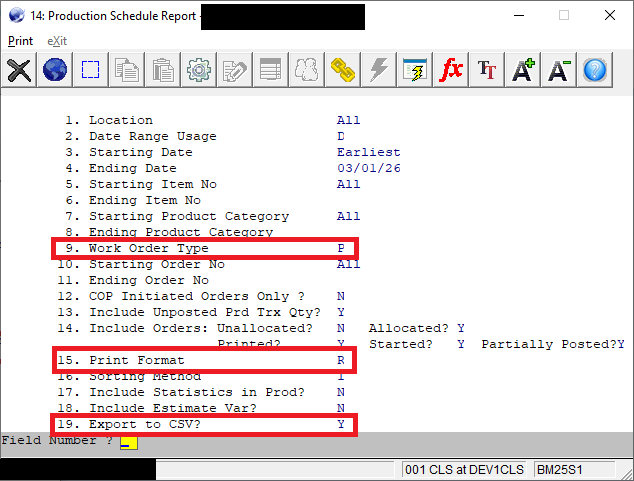

9. Note Type to Export CSV for Plus WO Prod Sched - The default is spaces. F7 search is available. If a value is entered, the note type must be on file. This option allows the user to choose a specific note type to be exported to CSV for each operation when the report is run for plus work orders (field 9 below) and when choosing to print routing detail (field 15 below option "R"). The same note type will be exported to CSV if attached to the production order file and the brief detail option is chosen (field 15 below option "B").

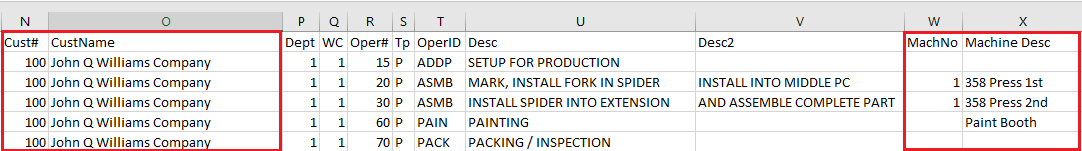

The CSV output was also enhanced to include the customer number, customer name, machine number, and production reporting pre and post comments.

Also, if the user has chosen to override the routing user-defined code literal in Global Setup, this literal is now used as the column heading for the UDC column in the CSV output. See column "X" above.

Programs Modified: NSCTLFIL.FD, NSCTLFIL.W41, NSCTLINI, NSCTLMN3, BM25P3

CLS
