BM33S1 Bill of Material Option Item Where-Used Report

BM33S1 Bill of Material Option Item Where-Used Report

Option Item Where-Used Report

Application Overview



The Option Item Where-Used Report prints the feature items that are parents for a range of option items.



For each option item, the report prints the parent feature item along with a description of each.  It also prints the feature number under which the option item is located in the feature/option configuration.



Run Instructions



Select Option Item Where-Used Report from the pull down BOMP Reports window.  The following screen will then be displayed:

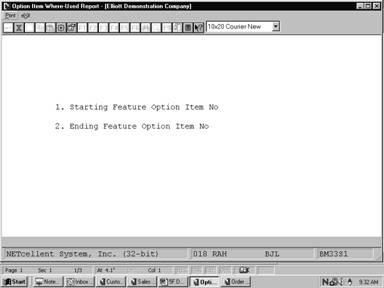

Option Item Where-Used Report Entry Screen





 The following options are available:

    • Select the desired mode from the Option Item Where-Used Report menu bar.
    • Enter the data requested on the screen.



          To return to the menu bar, press the ESC or F10 key. To leave this application, press X for EXIT when positioned at the menu bar.





    Entry Field Descriptions



    Name

    Type and Description

    1.      Starting Feature Option Item No

    15 alphanumeric characters.

    Enter the starting option item number for the range to be printed.

    Press the F7 key to search by item number or press the F8 key to search by item description.

    Defaults to All option items.

    2.      Ending Feature Option Item No

    15 alphanumeric characters.

    Enter the ending option item number for the range to be printed.

    Press the F7 key to search by item number or press the F8 key to search by item description.

    Defaults to the starting feature option item number.







    Option Item Where-Used Report





                                    O P T I O N   I T E M   W H E R E ‑ U S E D   R E P O R T

    All Items Selected

    Option Item         Option Item Description

         Feature Item        Feature Item Description                                            Qty/Per   Feature No

    BOX‑386‑1           Basic SM Box w/7 Exp 6‑16 1‑8

         PC‑386              386 Personal Computer           Customize During Order Entry        1.000000     001

    BOX‑386‑2           Adv Box HDps 8 Exp 32 5‑16 2‑8

         PC‑386              386 Personal Computer           Customize During Order Entry        1.000000     001

    DOS‑IBM‑1           IBM Version 3.2 DOS Package

         PC‑386              386 Personal Computer           Customize During Order Entry        1.000000     010

    DOS‑IBM‑2           IBM Version 4.01 DOS Package

         PC‑386              386 Personal Computer           Customize During Order Entry        1.000000     010

    DOS‑MSF‑1           MS Version 3.1 DOS Package

         PC‑386              386 Personal Computer           Customize During Order Entry        1.000000     010

    DOS‑MSF‑2           MS Version 3.3 DOS Package
