← Bill of Material / Work Order Plus

Issue Serial/Lot Component Item

Application Overview



The Issue Serial/Lot Component Item application should be run after posting production transactions.  This application will allow the issue of serial/lot components from the Serial/Lot File, and will ask for a serial/lot number to be used for the component.  When the entry has been accepted, records will be updated in the Serial/Lot Transaction File.



Run Instructions



Select Issue Serial/Lot Component Items from the pull down BOMP Processing window.  The following screen will then be displayed:

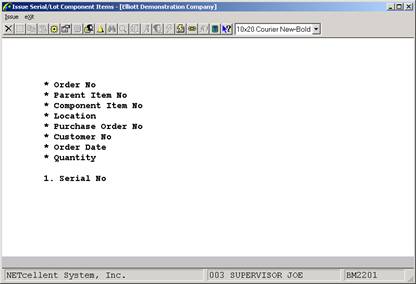

Issue Serial/Lot Component Items Entry Screen





      The following options are available:
    • Select issue option from the Issue Serial/Lot Component Items menu bar
    • Enter the data requested on the screen



          To return to the menu bar, press the ESC or F10 key. To leave this application, press X for EXIT when positioned at the menu bar.




    Entry Field Descriptions



    Name

    Type and Description

    * Order No

    6 numeric digits (999999).

    This is the order number from which the Serial/Lot components are to be issued.  Press theF1 key for the first order on file.

    * Parent Item No

    15 alphanumeric characters.

    This is the item which was entered as the production order line item.  Display only.

    * Component Item No

    15 alphanumeric characters.

    This is the Serial/Lot component which has to be assigned a Serial/Lot number and issued from the Inventory Lot/Serial Transaction File.  Display only.

    * Location

    2 alphanumeric characters.

    This is the location the Serial/Lot component will be issued from.  This is also the order location.  Change is not allowed to this field.

    * Purchase Order No

    8 alphanumeric characters.

    This is the package where the order originated (eg. BM = BOMP, CP = COP) followed by the original order number.    Change is not allowed to this field.

    * Customer No

    6 alphanumeric characters.

    If the order was copied from COP, this will display the customer's number and name.  If the order was entered in the Production Order Entry application, the field will be blank.  Display only.

    * Order Date

    A date in the standard date format.

    This is the date the order was made.  Display only.

    * Quantity

    This is the quantity of Serial/Lot components that needs to be issued for this order.  Display only.



    For Serial Components



    Name

    Type and Description

    1.      Serial Number

    15 alphanumeric characters.

    This is the serial number of the component, which needs to be issued from the Inventory Lot/Serial Transaction File.  Press the F7 key to search by serial numbers.



    For Lot Components



    Name

    Type and Description

    1.      Lot Number

    15 alphanumeric characters.

    This is the lot number of the component, which needs to be issued from the Inventory Lot/Serial Transaction File.  The entry of this field will be requested until the quantity is equal to 2000.  Press the F7 key to search by lot numbers.

    2.      Exp Month

    2 numeric characters.

    The entry of this field is required only if the quantity field is negative and the lot record does not exist in the Inventory Serial/Lot File.

    3.      Exp Year

    2 numeric characters.

    Same as #2 field entry.
