← Bill of Material / Work Order Plus

Indented Bill of Material Report

Application Overview



The Indented Bill Of Material Report prints a selected number of levels of the components for a selected range of parent items.



It allows the operator to choose the number of levels the report is to print and whether or not active items, obsolete items, and/or forecasted items are to be included.



For those components, which are printed, inventory data, engineering data and reference designators are optionally included.



Run Instructions



Select Indented Bill Of Material from the pull down BOMP Reports window.  The following screen will then be displayed:



​

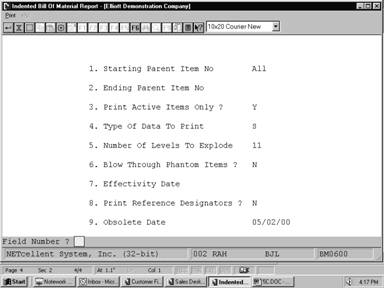

Indented Bill of Material Entry Screen





The following options are available:

    • Select the desired mode from the Indented Bill Of Material menu bar
    • Enter the data requested on the screen



          To return to the menu bar, press the ESC or F10 key. To leave this application, press X for EXIT when positioned at the menu bar.




    Entry Field Descriptions



    Name

    Type and Description

    1.      Starting Parent Item No

    15 alphanumeric characters.

    Enter the starting item number for the range of items you wish to print.

    Default is All.

    2.      Ending Parent Item No

    15 alphanumeric characters.

    Enter the ending item number for the range, which you are printing.

    Default is the starting parent item number.

    3.      Print Active Items Only?

    Y or N.

    Enter Y to print active items only, or N to print all items.

    This field defaults to Y.

    4.      Type Of Data To Print

    1 alphanumeric character.

    This field can have one of three values:

    S      =   Standard Data Only

    I       =   Inventory Data

    E      =   Engineering Data

    Inventory data reflects quantity on hand and quantity allocated totals for all locations.  Quantity on order is for the default location only.  Engineering drawing data includes engineering release and revision, and routing release, revision, and number.

    Default is S.

    5.      No Of Levels To Explode

    2 numeric digits (99).

    Enter the number of levels you wish to see.

    Default is 11.

    6.      Blow Through Phantom    Items?

    Y or N.

    Component items, which are neither stocked nor controlled, are known as phantom items.  Answering Y to this question allows you to blow through phantom items to the real component items, which are down one level.

    7.      Effectivity Date

    A date in the standard date format.

    Enter the effectivity date you wish to use for print items. This date will be used to determine whether to include or exclude items. If you press RETURN, no selection will be made based upon effectivity date.

    You will not be prompted to enter this field unless you answered N to Print Active Items Only?

    Default is no selection based on effectivity date.

    8.      Print Reference Designators?

    Y or N.

    Enter Y to print reference designators or N to decline.  Default is N.







    Indented Bill Of Material Entry Screen
