Single Level Bill Of Material

Application Overview



Single Level Bill Of Material prints the single level components for a selected range of parent items.  It does not print any components more than one level down.



It offers the option of blowing through phantom items (non‑stocked, non‑controlled component items) to show the phantom item's components in place of the phantom item itself.



It also allows the operator to choose whether or not he wishes the report to show active items, obsolete items, and/or forecasted items.



The application also permits one to choose to include on the report engineering data, inventory data and/or reference designators.



Run Instructions



      Select Single Level Bill Of Material from the pull down BOMP Reports window.  The following screen will then be displayed:

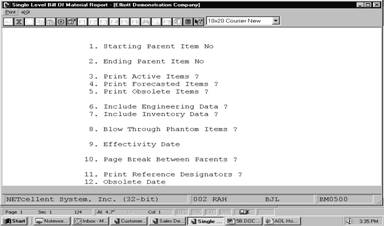

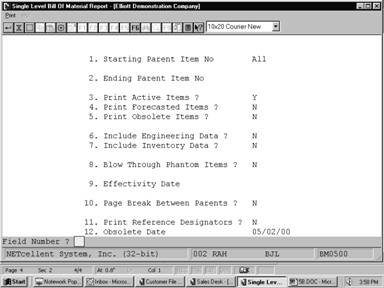

Print Single Level Bill of Material Entry Screen





      The following options are available:

    • Select the desired mode from the Single Level Bill Of Material menu bar
    • Enter the data requested on the screen



          To return to the menu bar, press the ESC or F10 key. To leave this application, press X for EXIT when positioned at the menu bar.




    Entry Field Descriptions



    Name

    Type and Description

    1.      Starting Parent Item No

    15 alphanumeric characters.

    Enter the item number of the first parent item for which you wish to print a Single Level Bill of Material report.

    Default is to All.

    2.      Ending Parent Item No

    15 alphanumeric characters.

    Enter the item number of the last parent item for which you wish to print a Single Level Bill of Material report.

    Default is the starting parent item number.

    3.      Print Active Items?

    Y or N.

    Enter Y to print active items or N to decline.

    This field defaults to Y.

    4.      Print Forecasted Items?

    Y or N.

    Enter Y to print forecasted items or N to decline.

    This field defaults to N.

    5.      Print Obsolete Items?

    Y or N.

    Enter Y to print obsolete items or N to decline.

    This field defaults to N.

    6.      Include Engineering

            Data?

    Y or N.

    Enter Y to include the engineering release or N to decline.

    This field defaults to N.

    7.      Include Inventory Data?

    Y or N.

    Enter Y to include inventory data or N to decline.  Inventory data reflects quantity on hand and quantity allocated totals for all locations.  Quantity on order is for the default location only.

    This field defaults to N.

    8.      Blow Through Phantom    Items?

    Y or N.

    Component items, which are neither stocked nor controlled, are known as phantom items.  Answering Y to this question allows you to blow through phantom items to the real component items, which are one level down.

    Default is N.

    9.      Effectivity Date

    A date in the standard date format.

    Enter the effectivity date you wish to use for printing items. This date will be used to determine whether to include or exclude items. If you press RETURN, no selection will be made based upon effectivity date.

    You will not be prompted to enter this field unless both active and forecasted have been selected for printing.

    Default is no selection based on effectivity date.

    10.    Page Break Between       Parents?

    Y or N.

    Enter Y for a page break between parent items or N to decline.

    This field defaults to N.

    11.    Print Reference Designators?

    Y or N.

    Enter Y to print reference designators, or N to decline.  Default is N.

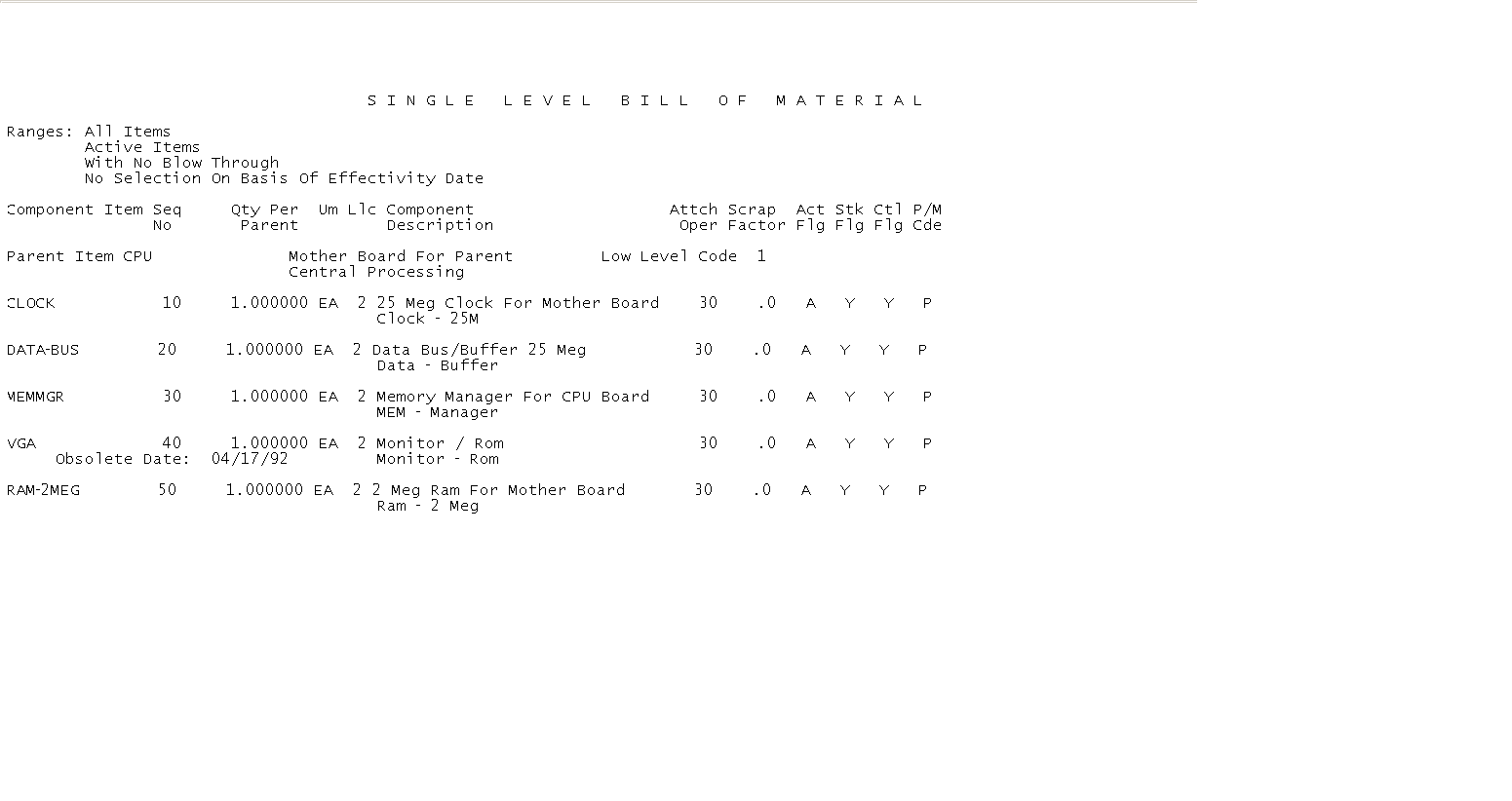

    Print Single Level Bill of Material
